| Cabinet Recess |
Recessed |
| Recommended Extinguisher |
MP10 |
| Rough Wall Opening |
28" x 10-1/2" x 4" |

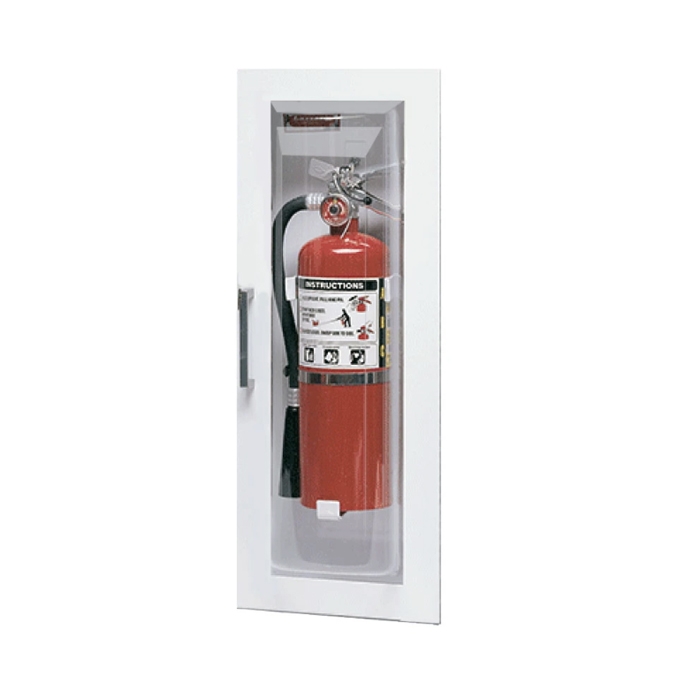

Larsen’s Architectural Series – Model V2709-R
(MP10)
Recessed Vista Bubble Style Fire Extinguisher Cabinet
The Vista cabinet has a frameless door with a
variety of color and design options. The door is constructed of clear acrylic,
and the bubble design provides a 180° view of the fire extinguisher. The
extinguisher is supported by the manufacturer’s standard bracket.
Key Features & Benefits
- Frameless Door: Constructed of clear
acrylic.
- 180° Visibility: The Vista bubble
design provides a clear, unobstructed 180° view of the fire extinguisher.
- Secure Installation: The fire
extinguisher is supported by the manufacturer’s standard bracket.
- Durable Construction: Available with
steel, aluminum, or stainless steel trim options to accommodate a variety of
architectural styles.
- Choice of Bubble Colors: The
standard Vista bubble is clear, with red acrylic available as an optional
finish when specified.
- Smooth Operation: Each cabinet
includes a chrome-plated pull handle, magnetic catch, and continuous piano
hinge.
- Multiple Finish Options: Steel,
aluminum, and stainless steel trim options are available.
Lock Specification
The Larsen-Lock locking system provides quick access to locked fire extinguisher
cabinets without the need to break glass in an emergency. The door opens by
pulling firmly on the handle.
Each unit includes a factory-applied decal
reading “IN CASE OF FIRE ONLY – PULL FIRMLY ON HANDLE.” (Pictured above)
Box Specification
All recessed and surface-mounted wall cabinets feature a white baked enamel box.
Surface-mounted cabinets with aluminum trim have a box constructed entirely of
clear or color-anodized aluminum. Surface-mounted cabinets with stainless steel
trim have a box constructed entirely of 304 stainless steel with a #4 finish.
Trim and Door Specification
The standard trim material is steel, with optional aluminum and stainless
steel materials available.
Steel trim can be specified with faux embossed
steel with a seamless white baked enamel finish, which may be used as either a
filler cover or prime cover.
All units are equipped with a chrome-plated pull
handle, magnetic catch, and continuous piano hinge. The standard Vista bubble is
clear acrylic, with red acrylic available as an option when specified.
Also available in steel and aluminum.
Larsen's Manufacturing Inc. Model V7209-R
