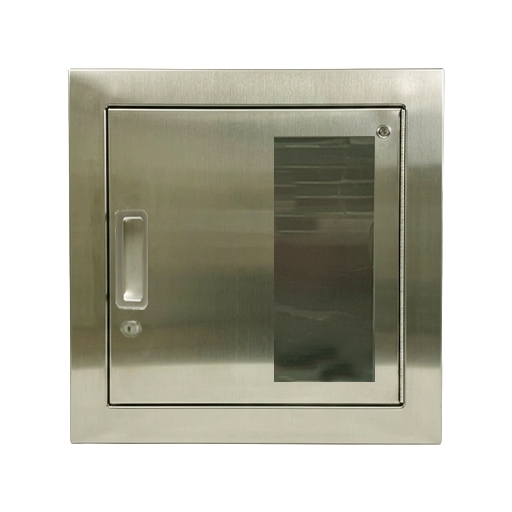

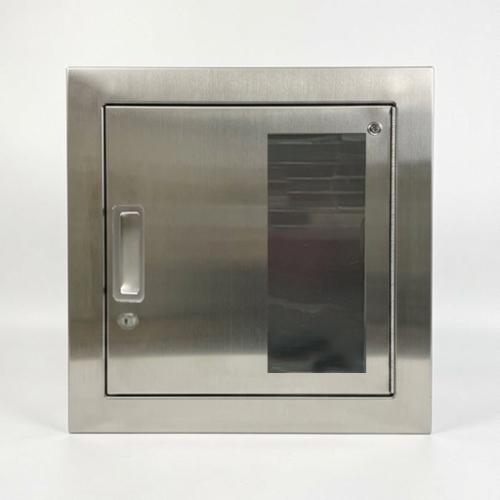

This recess stainless steel AED cabinet with vertical duo door glazing comes with a recessed pull handle, and Larsen-Loc® safety lock.  The #4 finish, 304 stainless steel trim and door feature one piece construction, a continuous matching hinge, and a self-adjusting roller catch.  The recessed cabinet box is heavy gauge steel with a white powder coated finish.  The flat trim projects 5/16 in. from the wall.  Made in the USA.

This cabinet is made to order and may not be returnable.

The Avenger Alarm (optional above) includes a keyed ON/OFF switch and sounds a 105 dB audible alarm when the cabinet door is opened.  The keyed switch allows the audible alarm to be turned off during AED inspection or service.

Submittal Sheet

Larsen's Catalog

Buy American

Trim Style	Inside Box Dimensions	Outside Box Dimensions
Recess Mounted	14" x 14" x 6-3/4"	17½" x 17½"

Larsen's Manufacturing Model SSAED1414RVDLREC
