| Cabinet Recess |
Recessed |
| Recommended Extinguisher |
MP10 |
| Rough Wall Opening |
25" x 10-1/2" x 4" |

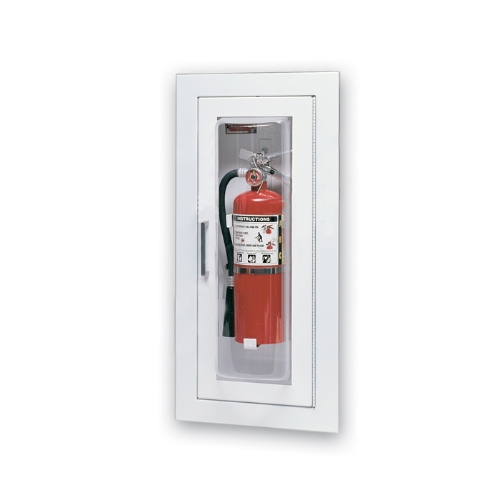

Larsen’s Architectural Series – Model: C2409-R (MP10)
Recessed Cameo Bubble Style Fire Extinguisher Cabinet
Cameo
Fire Extinguisher Cabinet — Smart Design. Maximum Visibility. Built to Protect.
The Cameo cabinet combines sleek design with practical protection, making it an
ideal solution for shallow-wall installations. Its unique protruding bubble
design securely protects the fire extinguisher while providing full 180°
visibility, allowing the extinguisher to remain highly visible and easily
accessible.
Key Features & Benefits:
- Space-Saving Design: Designed for
installation in shallow walls without sacrificing accessibility.
- 360° Protection & 180° Visibility:
The protruding bubble protects the extinguisher while offering a clear,
unobstructed view from virtually any angle.
- Secure Installation: Uses the
manufacturer's standard extinguisher bracket, included with each fire
extinguisher, to securely support the unit inside the cabinet.
- Premium Construction: Standard door
and trim are made from durable steel, with optional finishes available in
aluminum, stainless steel, solid brass, and solid
bronze.
- Durable Door Frame: All door frames
feature a 1/2-inch-thick hollow-metal construction
for lasting strength.
- Smooth, Reliable Operation: A
satin-finish pull handle, self-adjusting roller catch, and continuous piano
hinge provide dependable, easy operation.
- Matched Hardware: The continuous
piano hinge is constructed from material matching the door and trim for a
clean, coordinated appearance.
- Larsen-Loc® Compatible: Available
with all door styles for added security and design flexibility.
Lock Specification The Larsen-Loc® locking system
provides quick access to locked fire extinguisher cabinets without the need to
break glass. In an emergency, the door opens by pulling firmly on the handle,
ensuring fast and reliable operation.
Each unit includes a
factory-applied decal reading: “IN CASE OF FIRE ONLY – PULL FIRMLY ON HANDLE.”
(Priced above.) Box Specification:All
recessed and semi-recessed cabinets and surface-mounted steel cabinets have a
heavy gauge, white baked enamel box. Surface-mounted cabinets with aluminum door
and trim have a box constructed entirely of clear or color anodized aluminum.
Surface-mounted cabinets with stainless steel door and trim have a box
constructed entirely of 304 stainless steel with a #4 finish.
Trim and Door Specification
Steel trims and doors are one piece, constructed of heavy gauge,
cold-rolled steel with a standard finish of white baked enamel, which can be
used as either a finish or prime coat.
Also available in steel and
aluminum.
Larsen's Manufacturing Inc. Model C2409-R
