Description

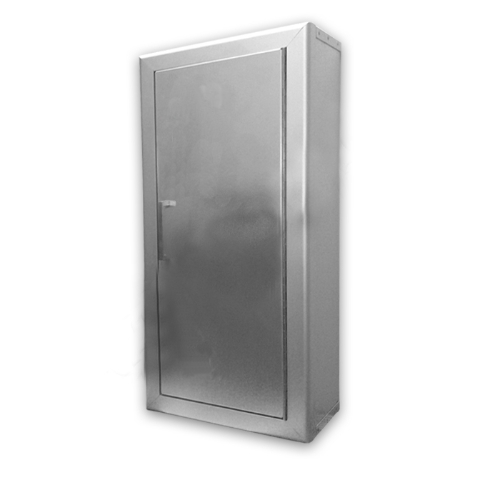

Larsen's Surface Mounted Fire Extinguisher Cabinet AL-2409-SM-SD
Larsen's Architectural Series is a traditional, value added line of recessed, semi-recessed, and surface mounted fire extinguisher cabinets. These units are designed for all types of buildings and are equipped with the convention door styles. All doors are ½" thick and open 180º. All doors have a satin finish pull handle with a self-adjusting roller catch, and a continuous piano hinge constructed of material which matches the door and trim.

Lock Specification:
The Larsen-Loc® provides access to a locked cabinet, without requiring the breaking of glass. During an emergency, it permits the cabinet door to be opened simply by pulling sharply on the handle. Factory applied decal reads: "IN CASE OF FIRE ONLY - PULL FIRMLY ON HANDLE" (priced above)

Box Specification:
Surface-mounted cabinets with aluminum door and trim have a box constructed entirely of clear or color anodized aluminum.

Trim and Door Specification:
Aluminum trims are constructed of extruded or fabricated aluminum and all corners are mitered.
Aluminum is recommended for applications in salt air and other corrosion prone environments.
Clear satin anodized finish is standard for all trims and doors, and optional color anodized finishes are available.
