| Cabinet Recess |
1-1/2“ |
| Recommended Extinguisher |
MP5/MP10 |
| Rough Opening Dimensions |
25“ x 10 1/2“ x 5“ |
(fire extinguisher not included)

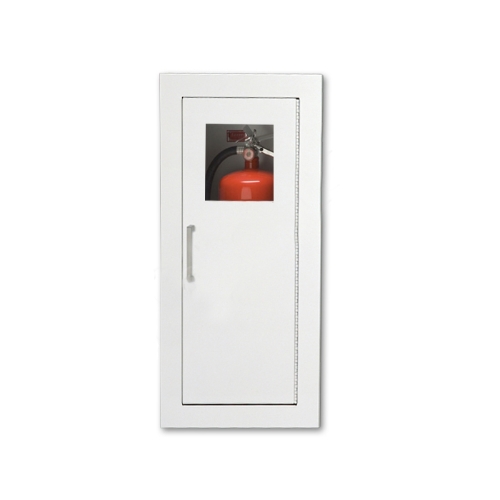

Larsen's 2409-R7-HD is a Traditional Architectural Series Cabinet, Designed for all types of buildings. One piece door and trim made of cold-rolled steel with a standard
white baked acrylic enamel finish, which can be used as either a finish or prime
coat. 1/2
inch thick Doors and open a full 180 degrees. Doors have a satin finish pull handle
with a self-adjusting roller catch
(optional fire handle is priced
above). Continuous piano hinge which matches the door and
trim. Horizontal Duo Door Glazing. Semi-Recessed Cabinet with a Projection of
1-1/2" from Wall.
The Larsen-Loc®
(priced
above) provides access to a locked cabinet, without requiring the
breaking of glass. During an emergency, it permits the cabinet door to be opened
simply by pulling sharply on the handle.
Also available in both Aluminum and
Stainless Steel.
