Quantity:

Quantity

1-1112-5960+

 Price Each

$32.58$29.30$26.38
Description

  • Made in the USA
  • Cannot Rust
  • No Sharp Corners
  • No Glass to Shatter
  • No Paint to Chip
  • Pitched Drainage
  • Natural Ventilation
  • Fire Retardant
  • Dent-Proof
  • Lower Freight Cost
  • Less Storage Space
  • Easily Cleaned
  • No Padlocks Required
  • High Desity Injection Molded
  • Includes Breaker Bar Assembly
  • Lower Replacement Costs

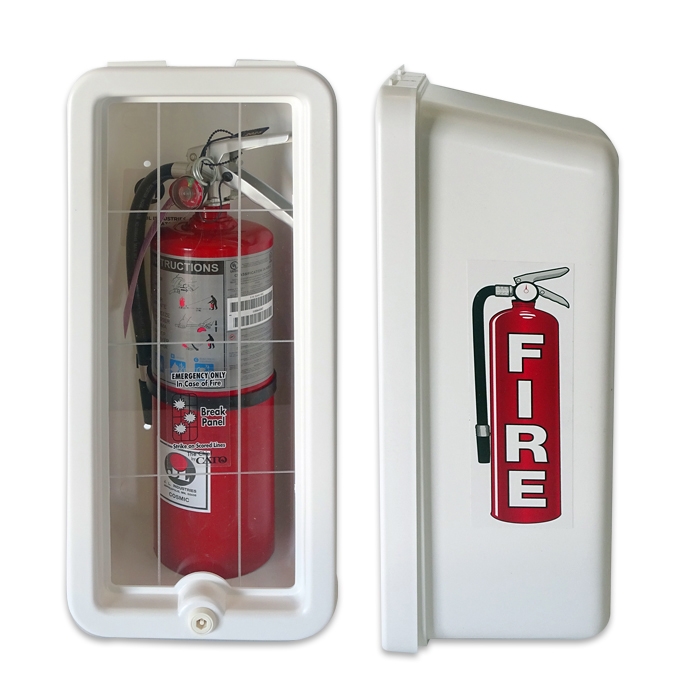

CATO - CHIEF - PLASTIC FIRE EXTINGUISHER CABINET
This plastic fire extinguisher cabinet, body and frame, is made with injection molded white virgin high-impact crystal polystyrene (.110 thickness) with ultra-violet inhibitors. The ultra-violet inhibitors prevent the color from fading. The clear virgin acrylic Plaskolite® panel (.080 thickness) can be broke with the breaker bar or with your elbow and will not cut you.

HIGHLIGHTS:

  • Surface or Semi-Recessed Installation
  • Cylinder Lock with Key
  • White Injection Molded Plastic Protective Lock Cover
  • Includes Breaker Bar Assembly
  • Grid-Scored, UV resistant Break Panel for Improved Emergency Access
  • UV Resistant Instruction Label for Break Panel
  • Protective Frame
  • Lower Maintenance Cost
  • Includes Standard "In Case Of Emergency" Label, please specify above if "California, Florida, or Wahington" Label is needed

SIZES

  • 105-5 is for 5 or 2½ lbs. extinguisher
  • 105-10 is for 10 lbs. extinguisher
  • 105-20 is for 20 lbs. extinguisher

LOCK & KEY
The chromium plated brass safety lock and key with weather-proof protective lock cover allows designated personnel access for periodic maintenance of the fire extinguisher.

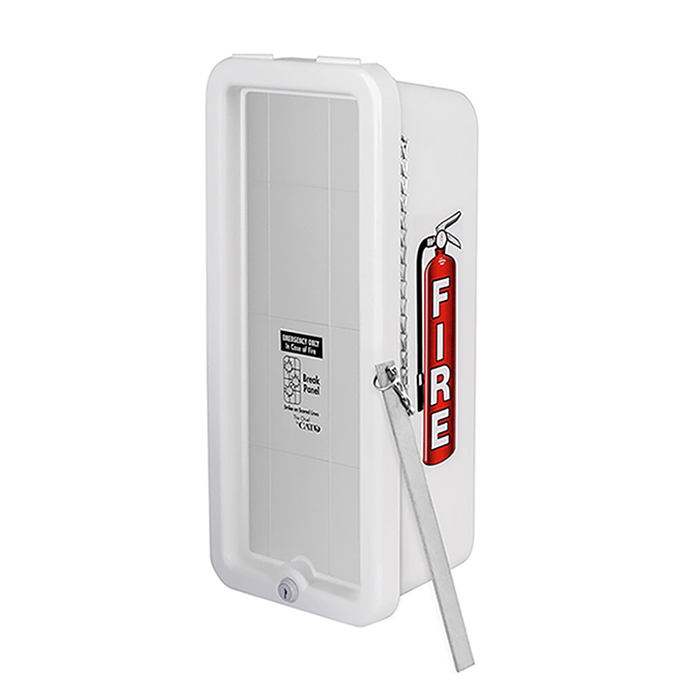

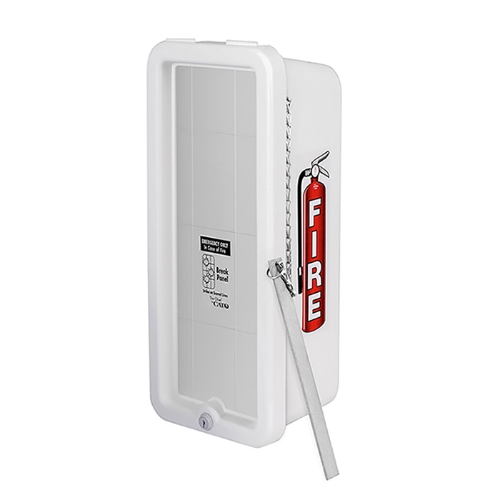

BREAKER BAR
The breaker bar is includes with the cabinet and is used to break the clear acrylic panel.

SAFETY
With no sharp edges or glass to brake, this plastic fire extinguisher cabinet is one of the safest choices available.

MOUNTING
All though this cabinet is normally surface mounted, it can be semi-recessed. NOTE: Cabinet does not come with any molding to recess mount the cabinet. Because of this plastic fire extinguisher cabinet’s single wall design, it will  take slightly less space to store the fire extinguisher.

PLASTIC FIRE EXTINGUISHER CABINET DIMENSIONS

Model # Interior Tub Overall Outside Trim With Cover Outside
  W H D W H D W H D
Plastic Fire Extinguisher Cabinets
105-5 6" 16 3/4" 5 3/8" 8" 19" 6 3/8" 8 1/4" 19 1/4" 6 3/4"
105-10 6 3/4" 20 1/2" 6" 9" 23" 7" 9 1/4" 23 1/4" 7 1/4"
105-20 9" 26" 8" 11" 28" 9" 11 1/2" 28 1/2" 9 1/2"

  Technical Data   Catalog

Made in USA

  Warranty
